NS-200WB/300WB Schematic Diagram & examples

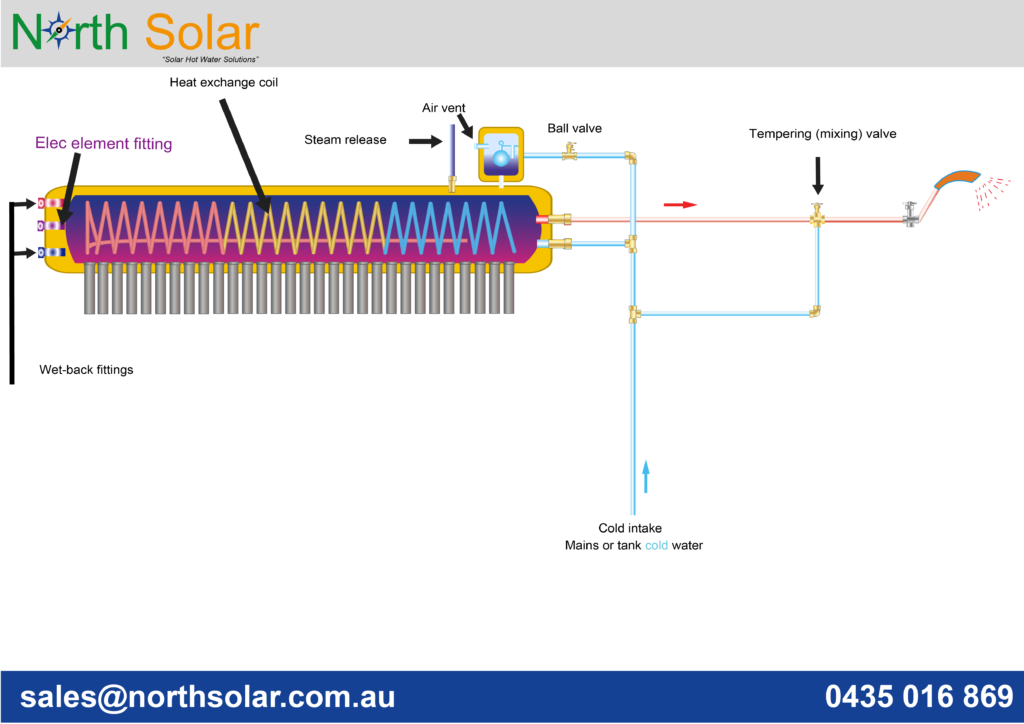

NS-300WB Schematic standard configuration
NS-200WB/45 Example installed on a flat roof of 22˚
by reducing rear legs and repositioning rear & side bracing
NS-200WB/45˚ Example installed on a flat roof
Click on each image to move to the next one
NS-200WB/45˚ Example installed on a pitched roof of 30˚
The best products. North Solar Hot Water systems are made with food grade stainless steel with 99.9% copper heat exchange unit Ph 0435 016 869 for enquiries and orders.
